Robust and proven a million times

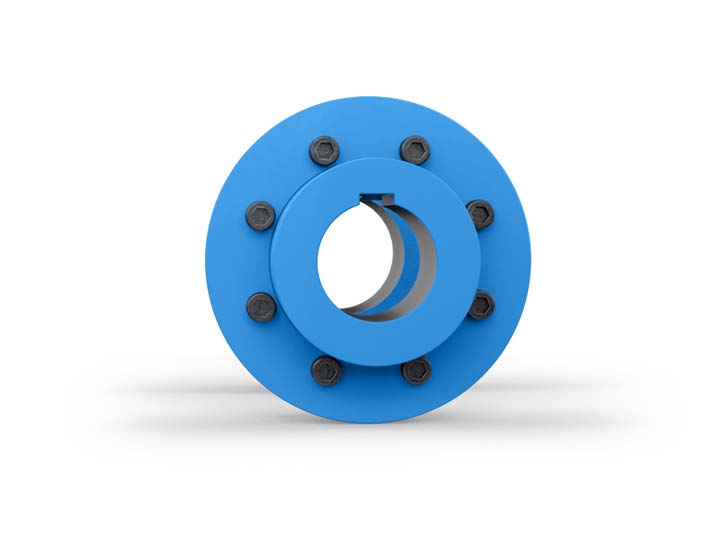

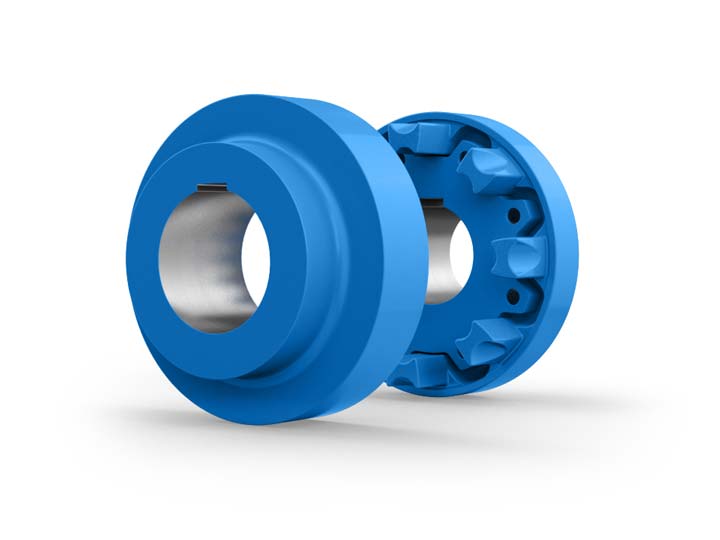

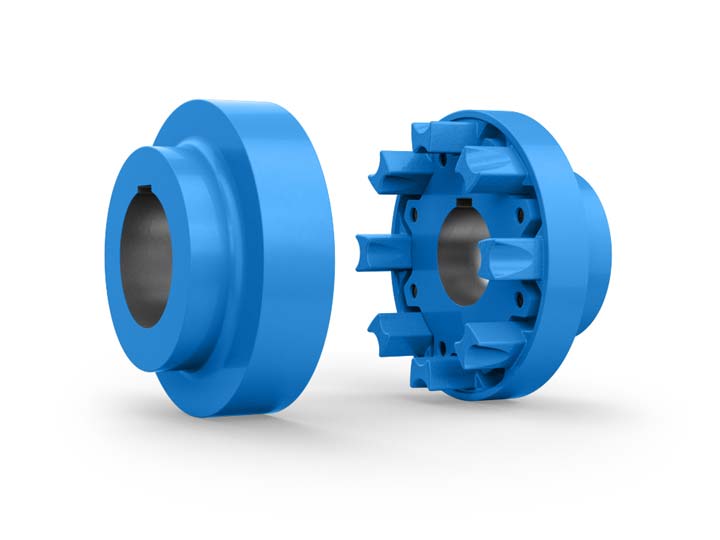

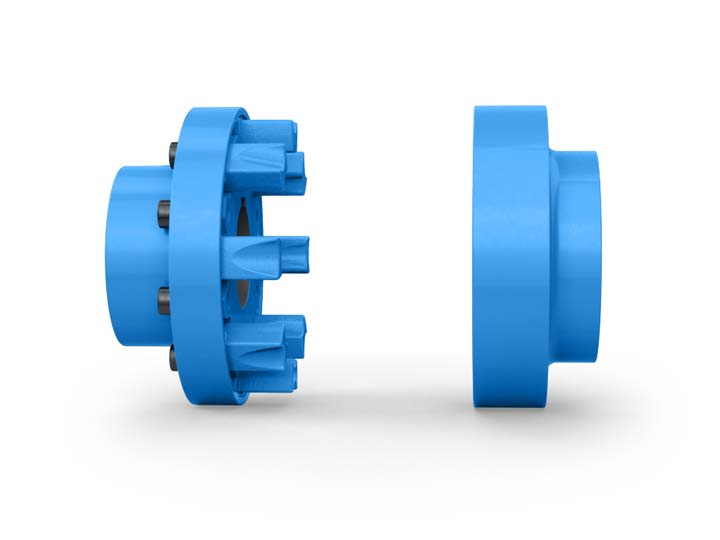

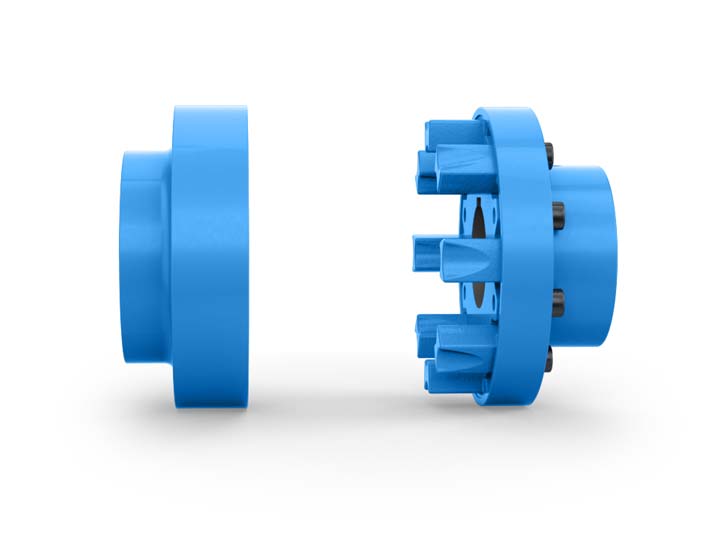

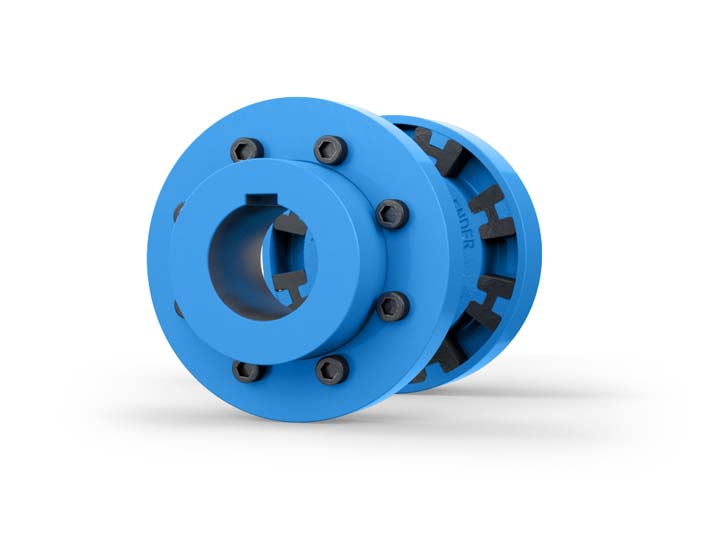

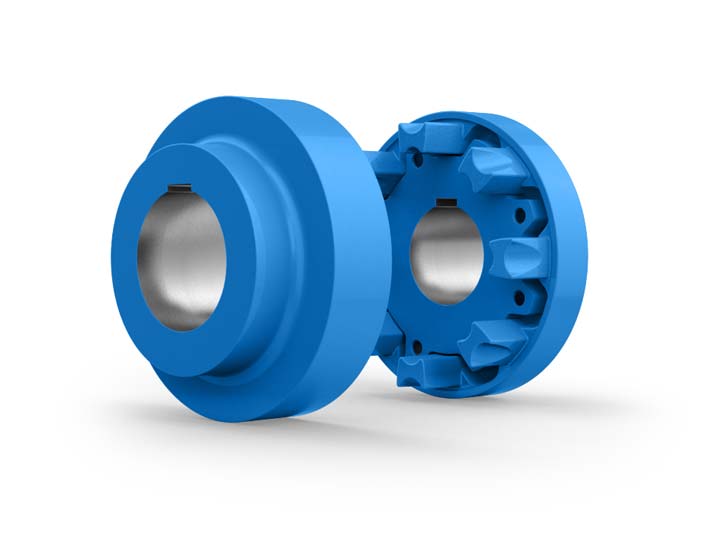

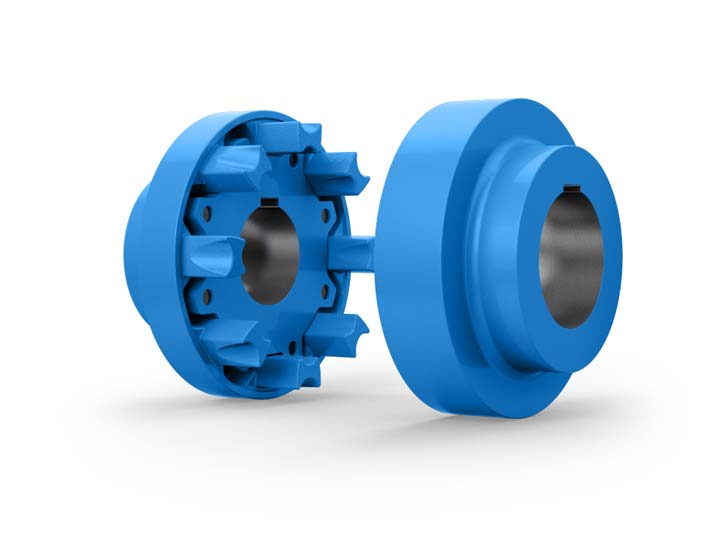

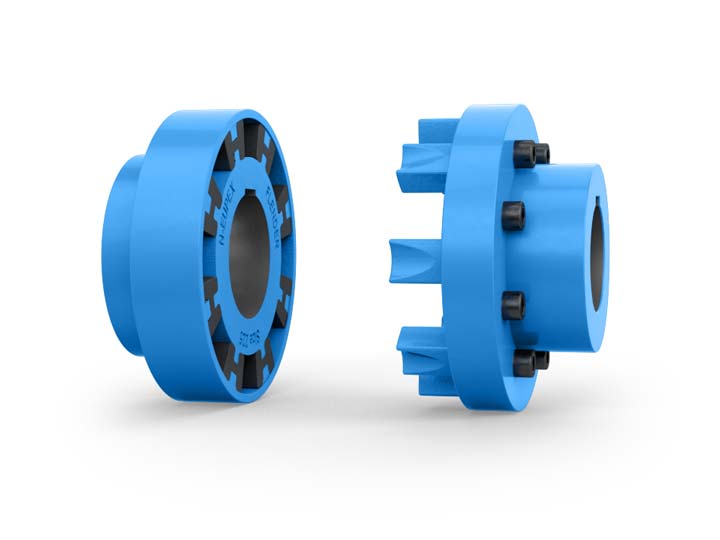

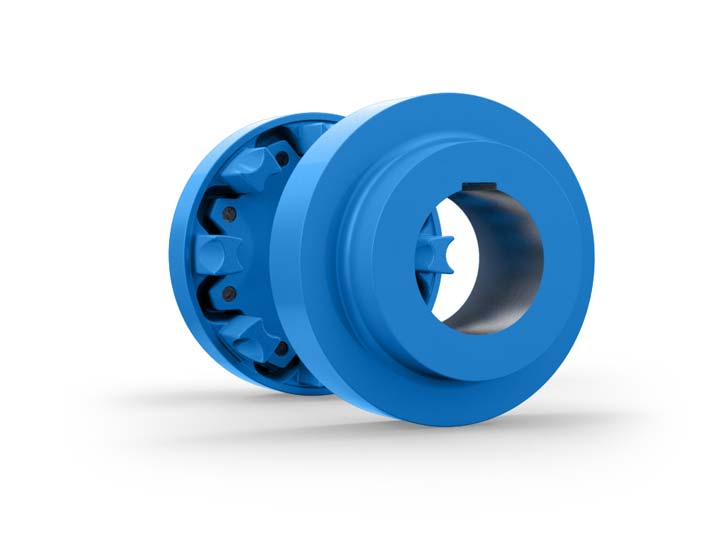

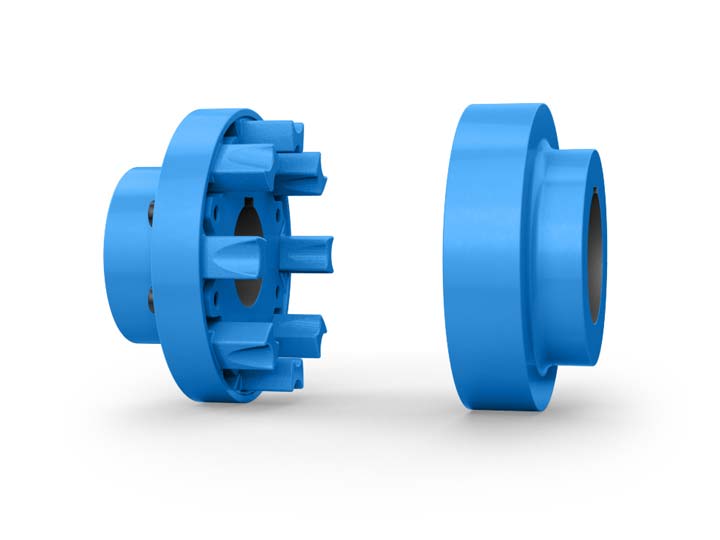

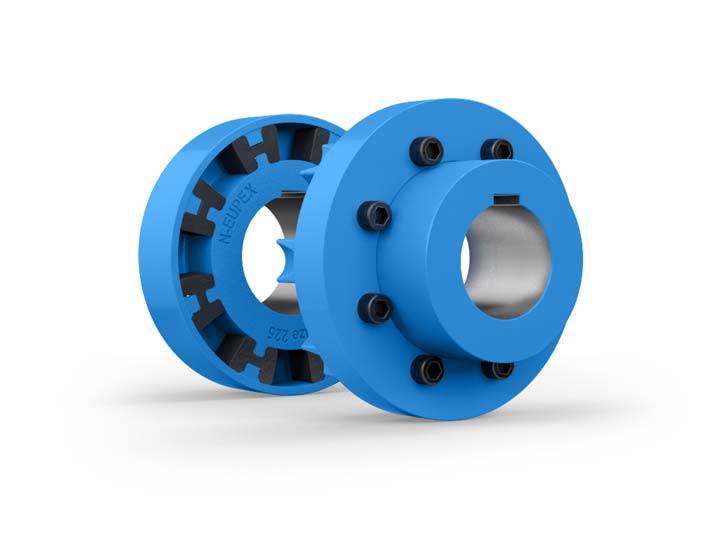

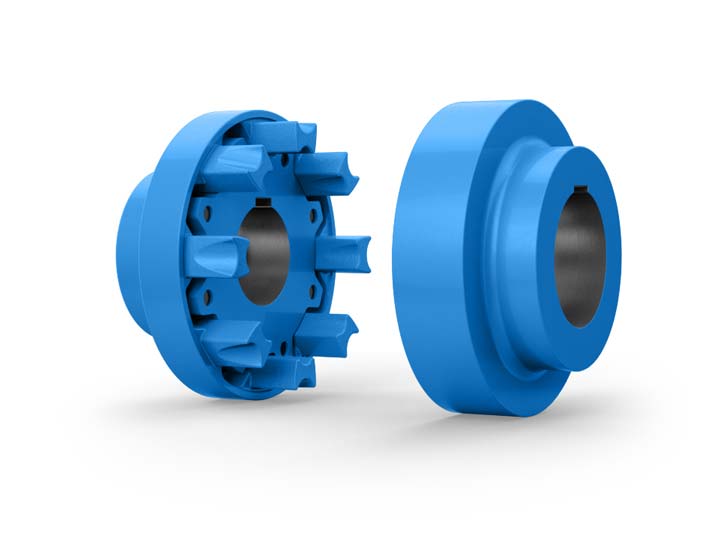

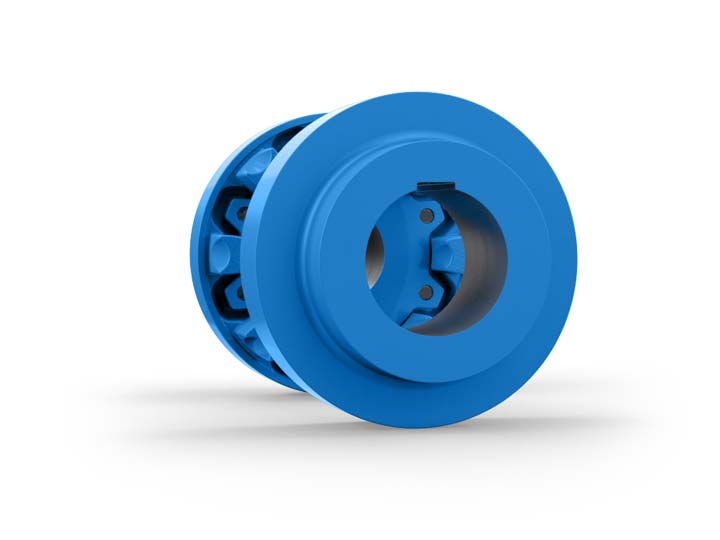

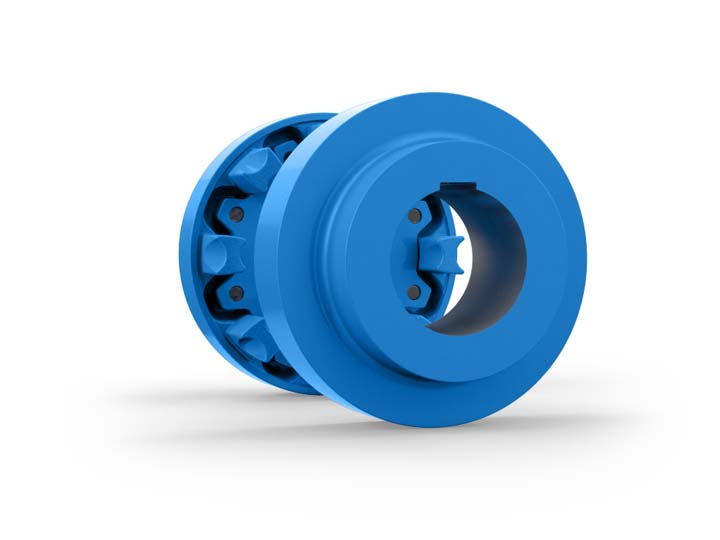

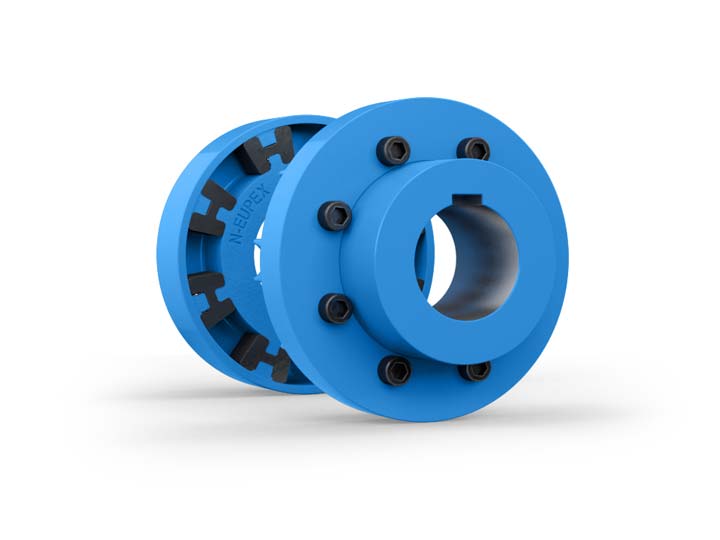

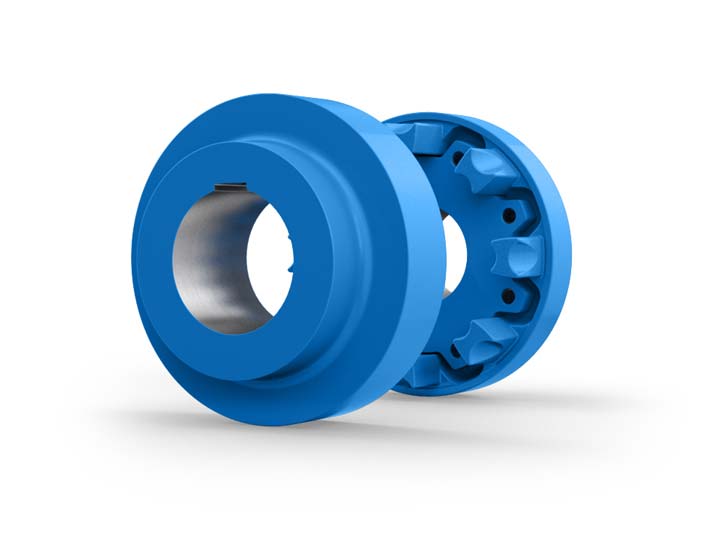

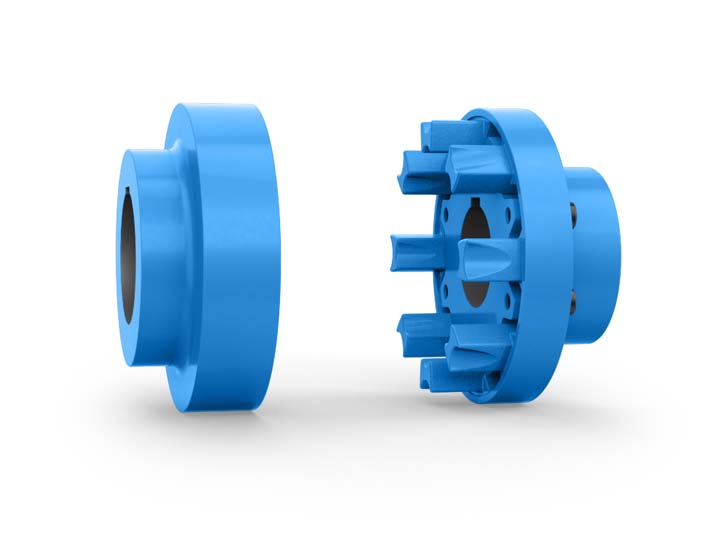

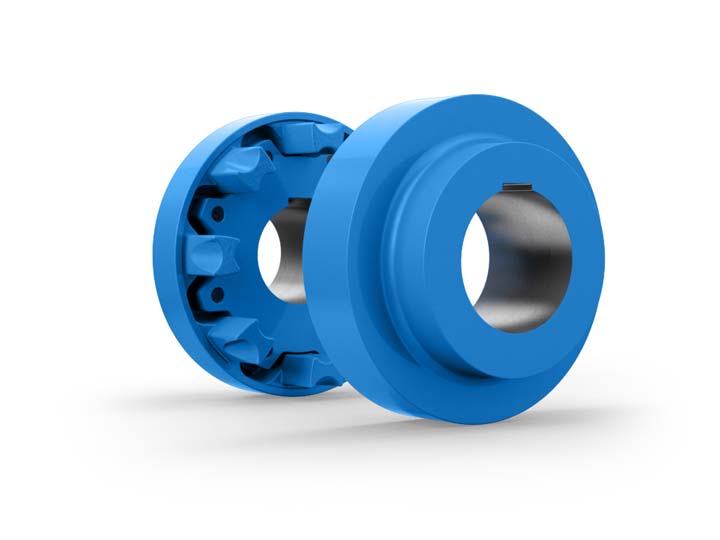

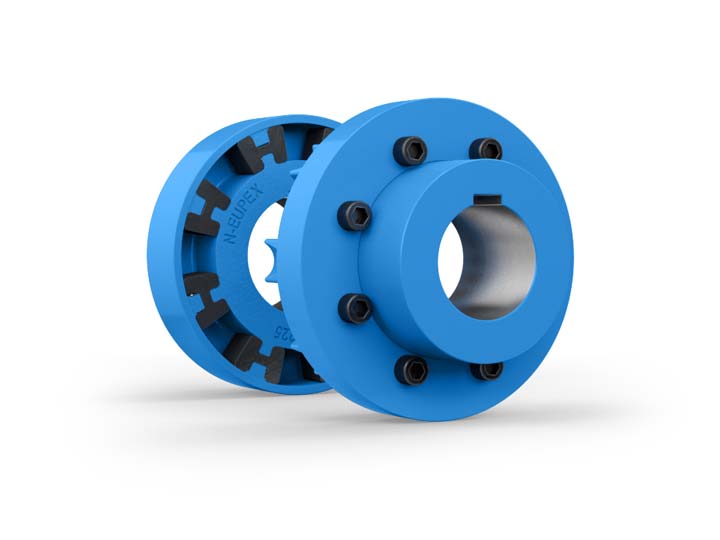

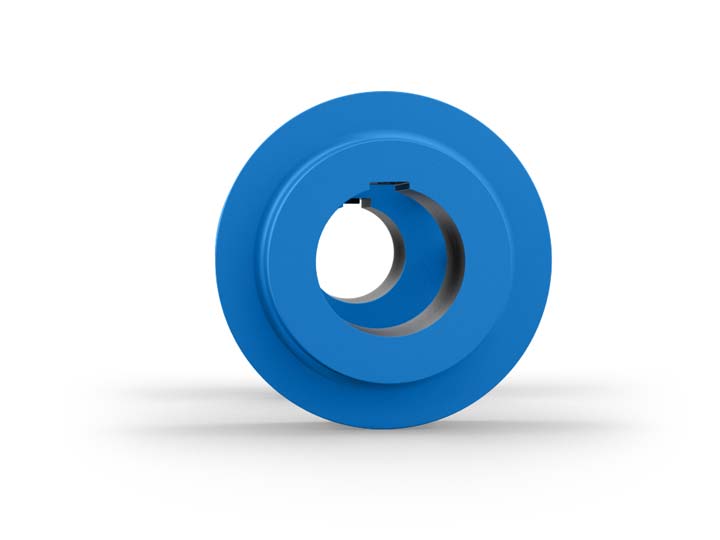

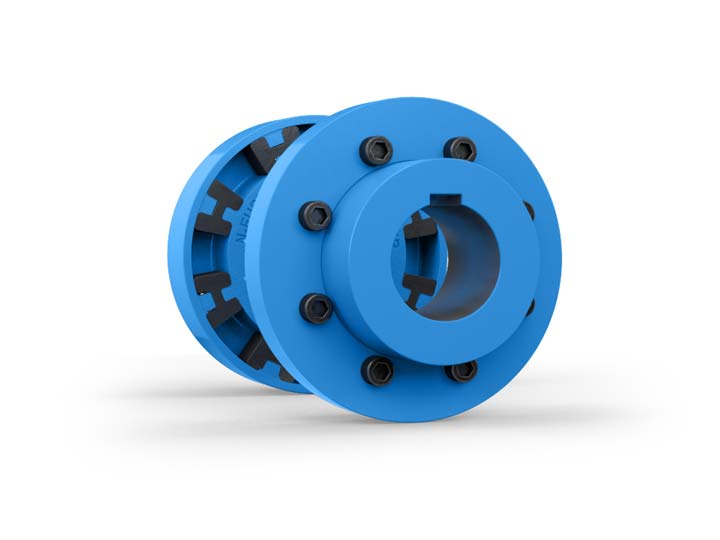

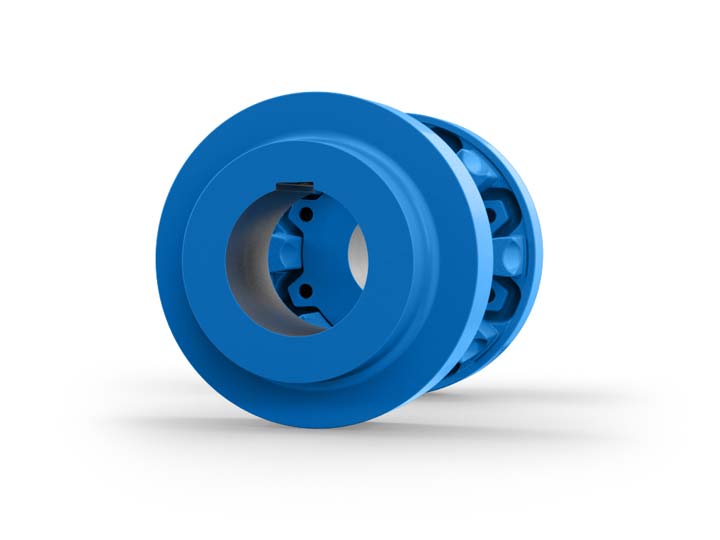

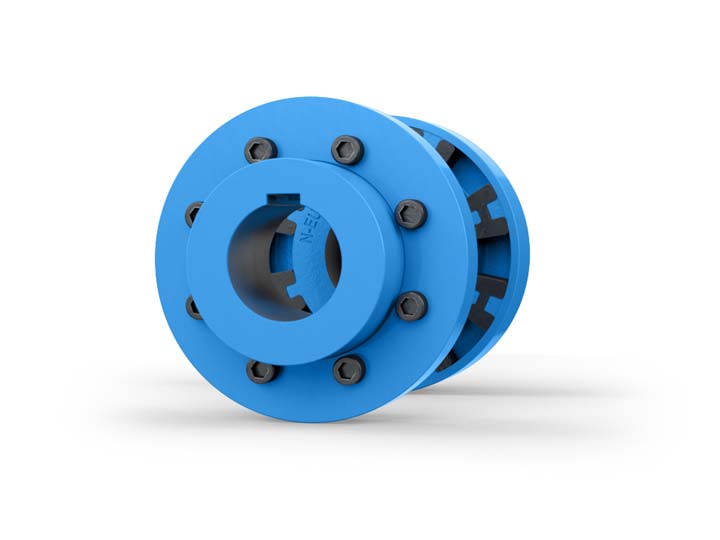

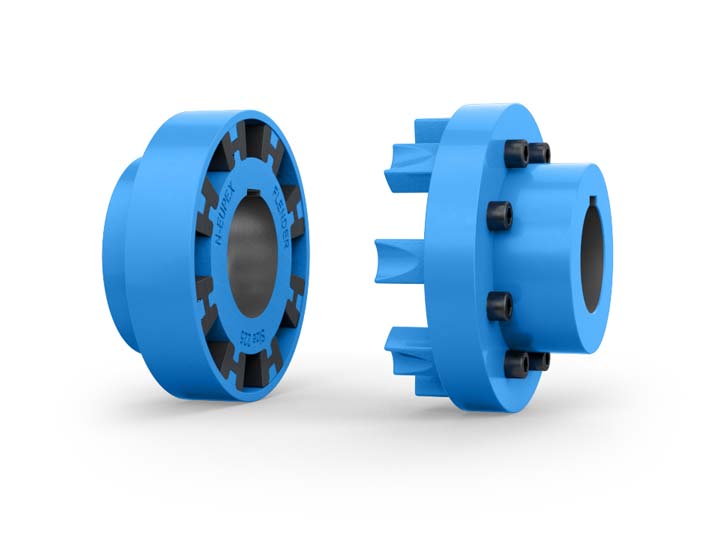

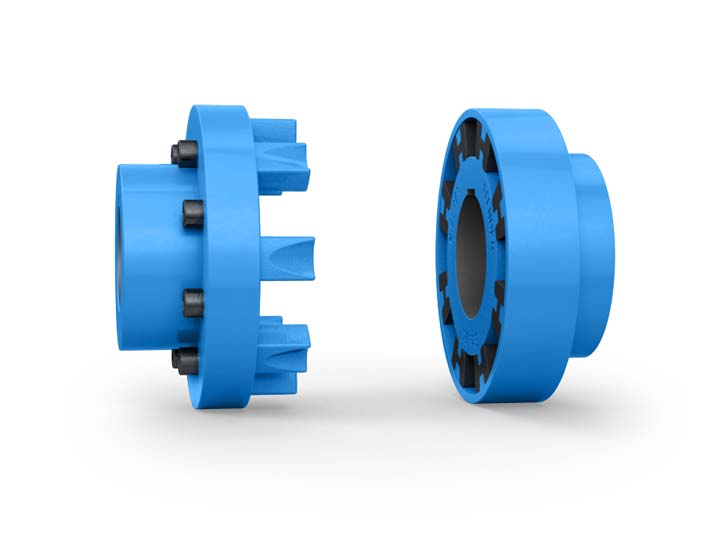

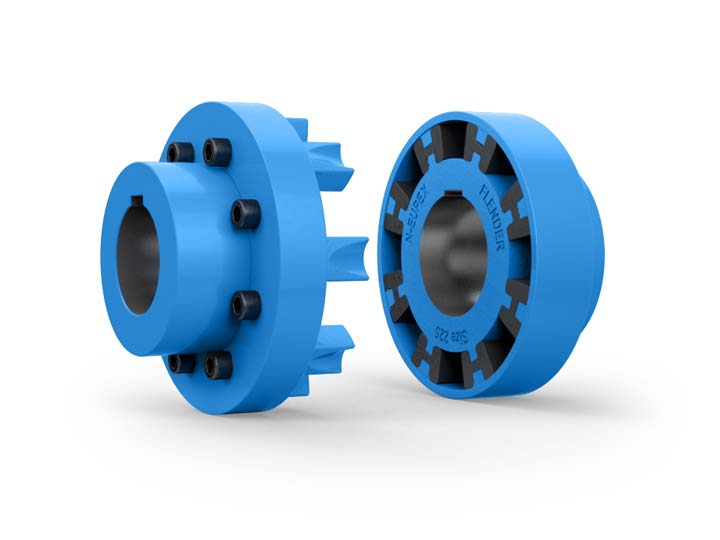

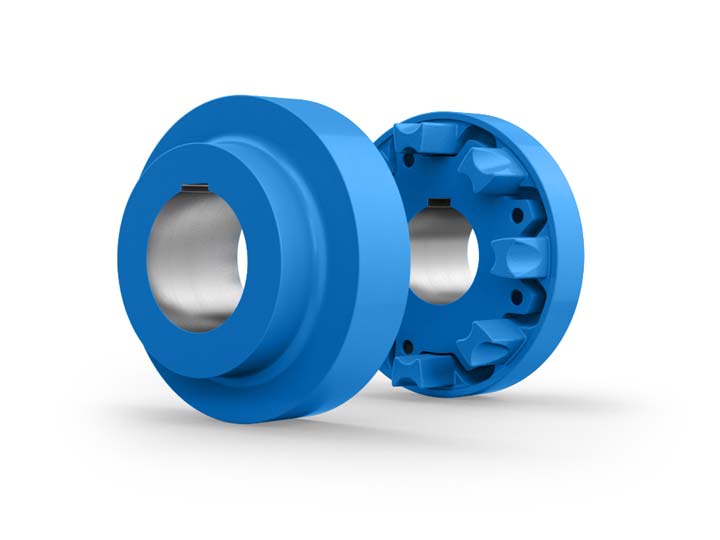

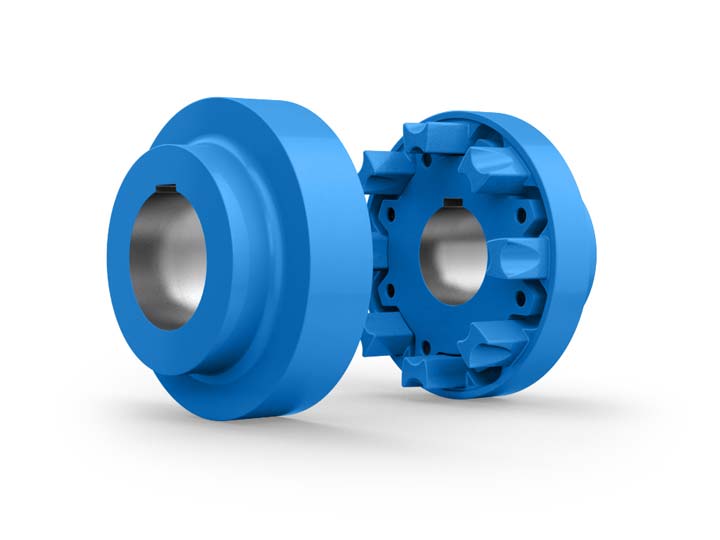

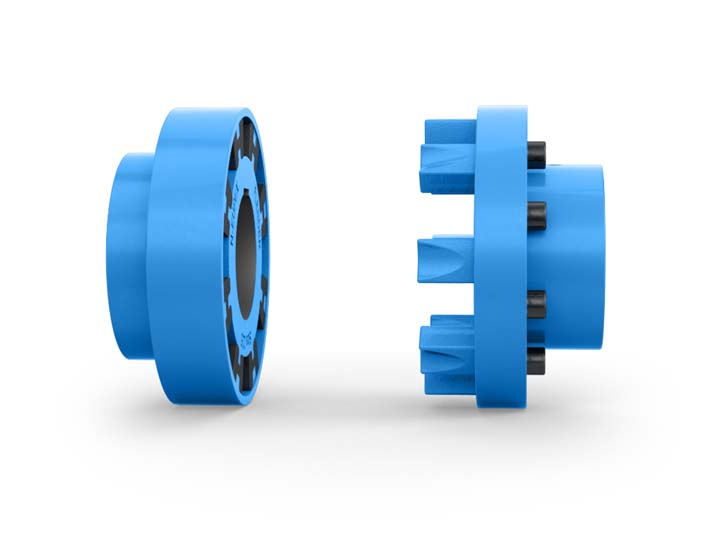

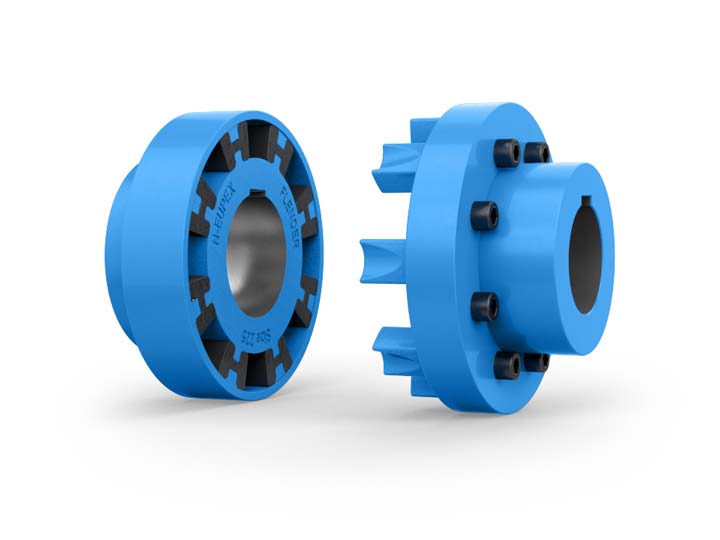

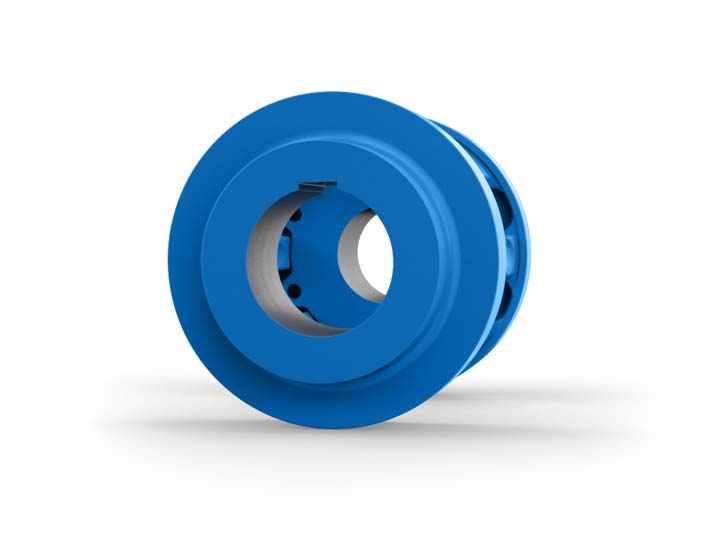

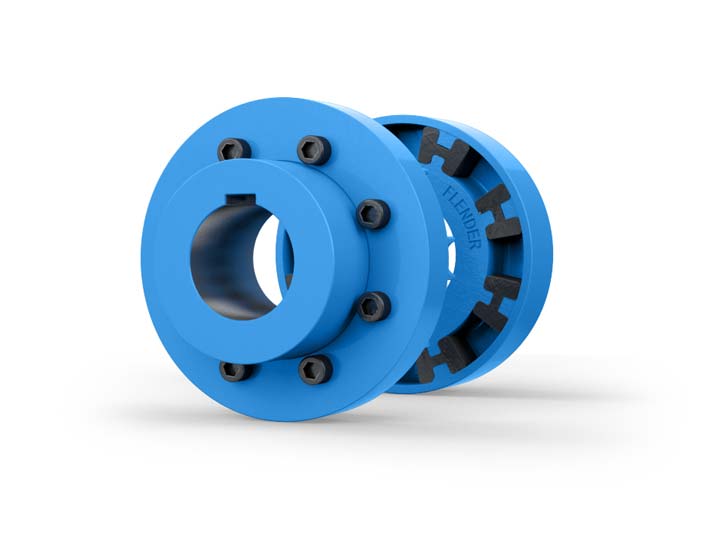

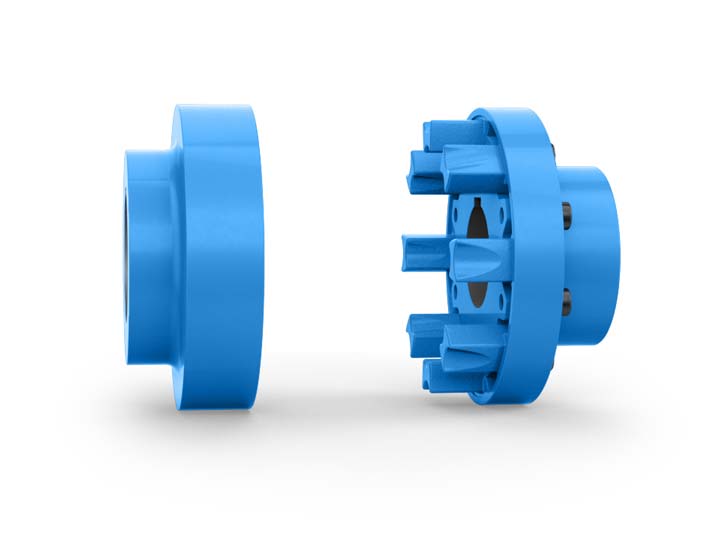

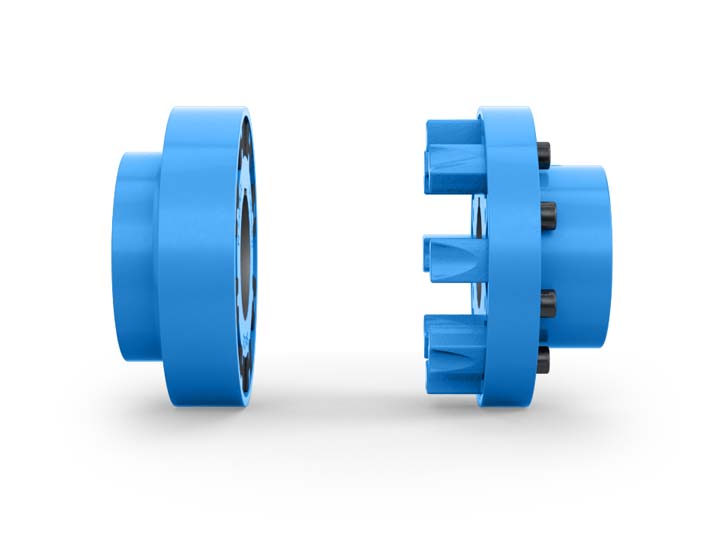

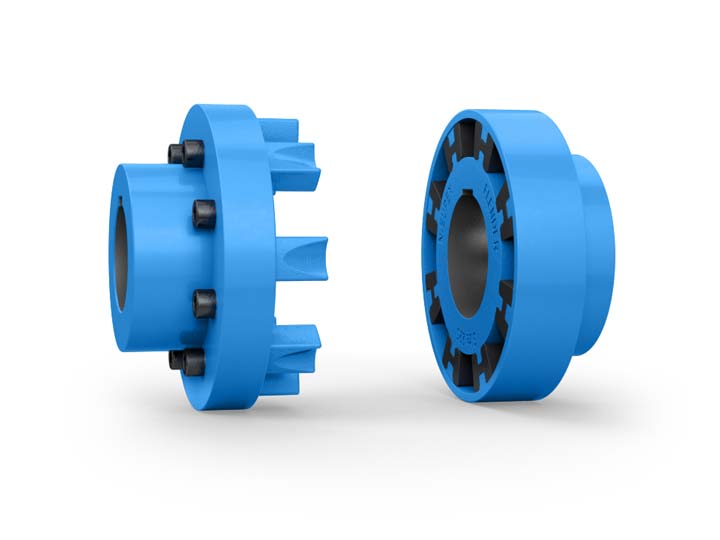

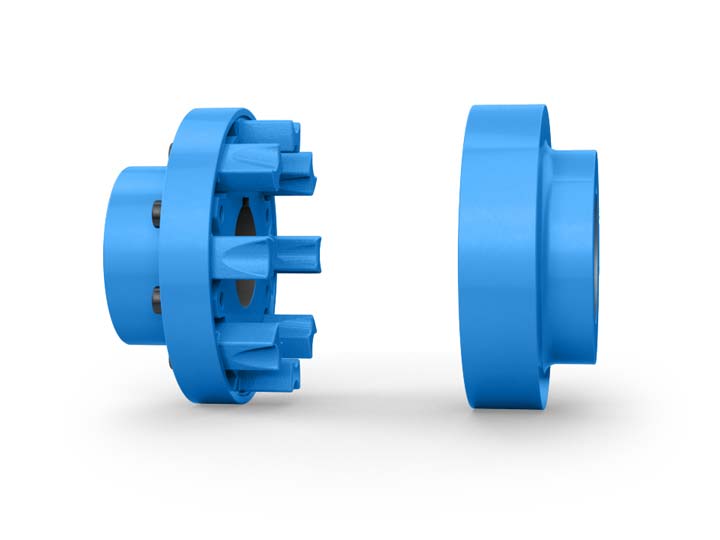

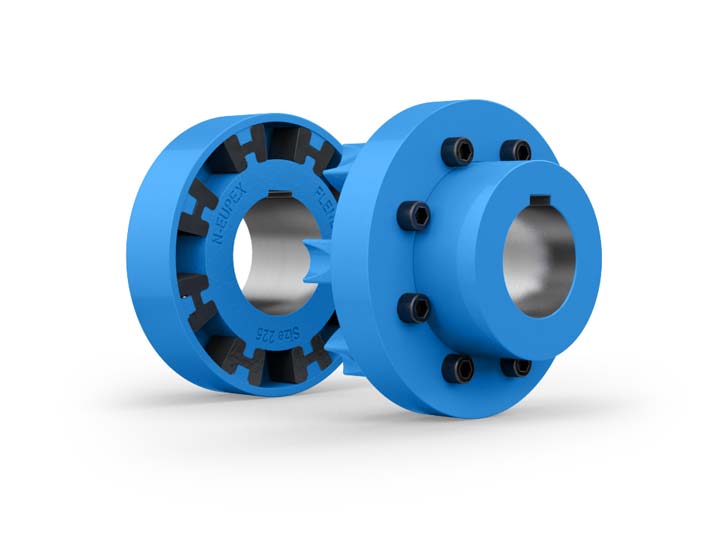

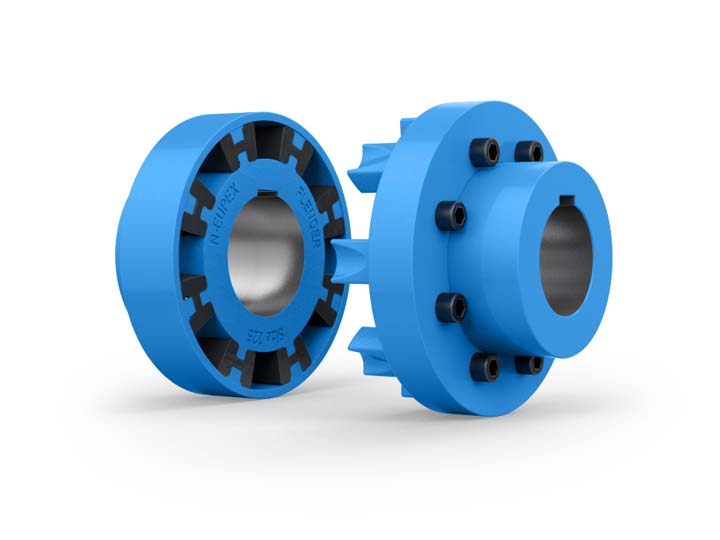

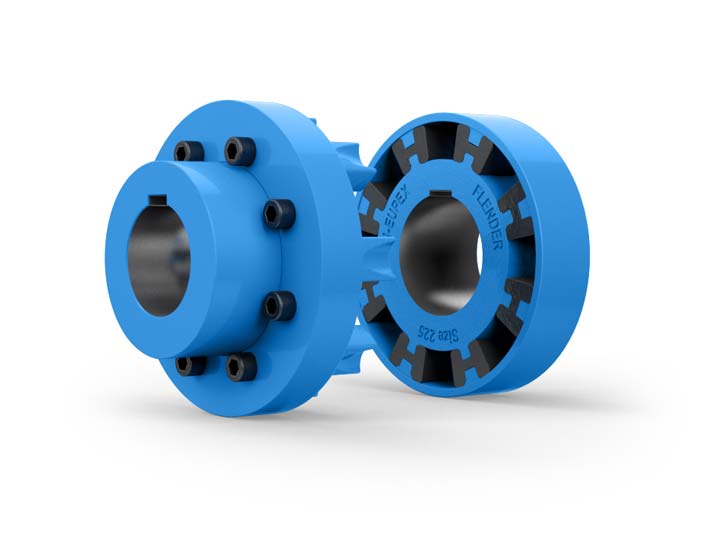

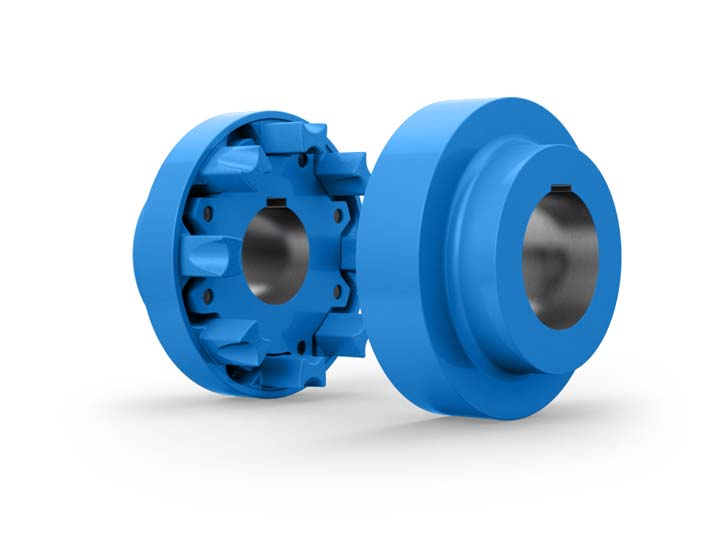

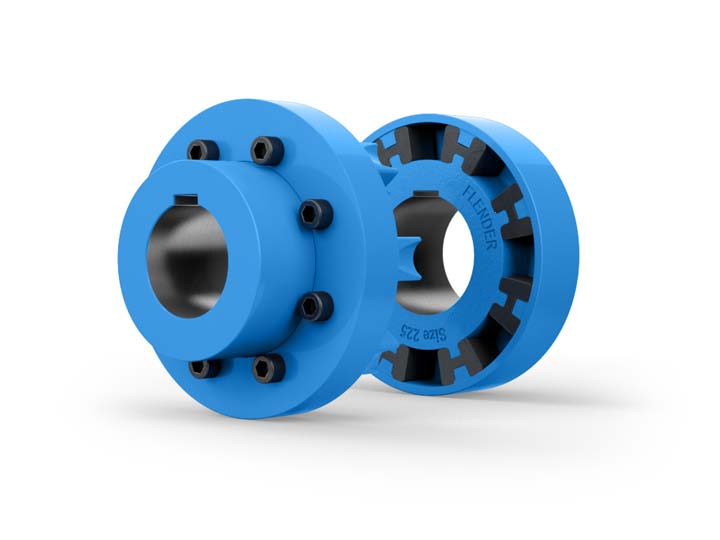

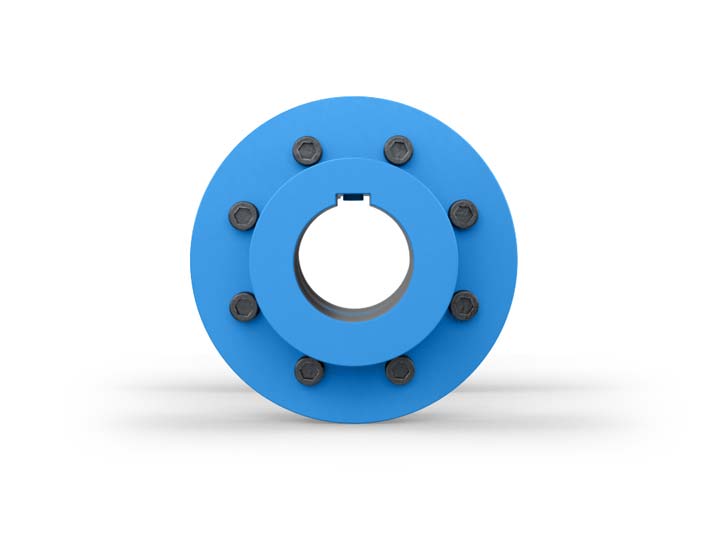

The N-EUPEX coupling is of a modular design and a very simple construction. N-EUPEX types are put together from subassemblies to fit requirements. The coupling is assembled by simply pushing the halves of the coupling together. Wear is confined to the elastomer packs, which have to be replaced at the end of their useful lives.

Robust and proven a million times

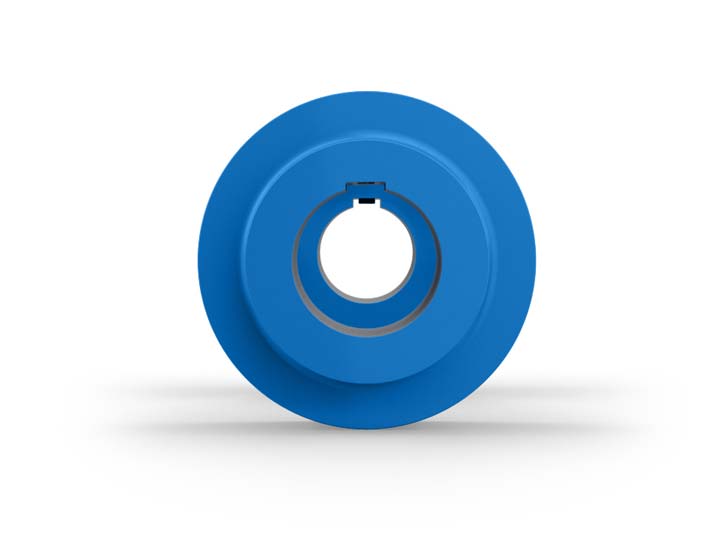

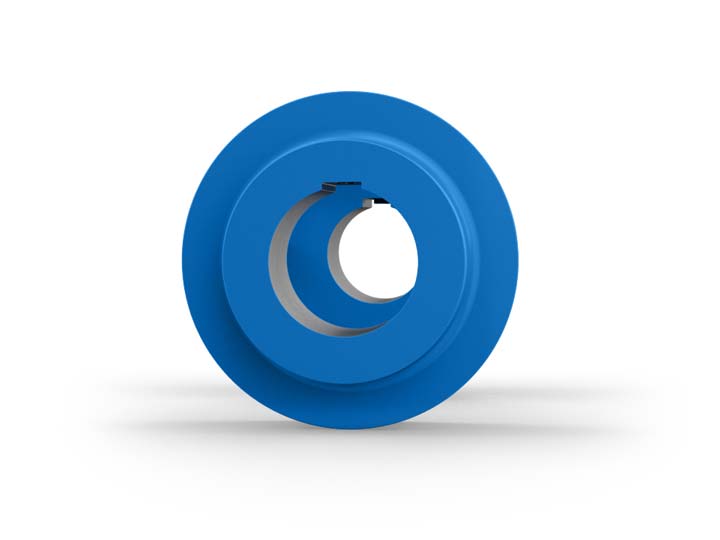

Depending on the type of coupling, the elastomer packs can be changed without having to shift the coupled machines. The coupling parts are quickly available ex stores and are mostly finish-machined, i.e. with finished bore, keyway, set screw and balancing.

The N-EUPEX coupling is available as a complete module set in more than 23 sizes for a torque range of from 12 to 85,000 Nm.

Special features

• Universally operable, damping shaft coupling for compensating shaft misalignments
• Highest possible operational safety and reliability, because fail-safe
• Suitable for plug-mounting and simplified installation thanks to only three parts
• Suitable for use in areas requiring explosion protection. Certified to Directive 2014/34/EU

Areas of application

Widely used in mechanical engineering generally, both on the motor side and as a slow-running coupling (e.g. pumps, fans, compressors) and with high torques for connecting gear unit and driven machine (e.g. mills).
